MIL-PRF-85045/15B
Mass per unit length:
< 15 kg/km.
Short term minimum bend diameter:
Eight times the OFCC outer diameter.
Long term minimum bend diameter:
Sixteen times the OFCC outer diameter.
> 270 N.
Tensile loading:
Dynamic bend tensile load:
90 N minimum.
Jacket material: The OFCC jacket shall be composed of a low halogen, low smoke,
low toxicity polymer material.
FINISHED CABLE:
Dimensions and configuration: See figure 2. Four OFCC units shall be helically
laid over the central member. The minimum outer jacket thickness shall be not less
than 0.7 mm (establishes compatibility with termination and penetration devices).
NOTES:
1. OFCC - Optical fiber cable component.
2. Dimensions are in millimeters.

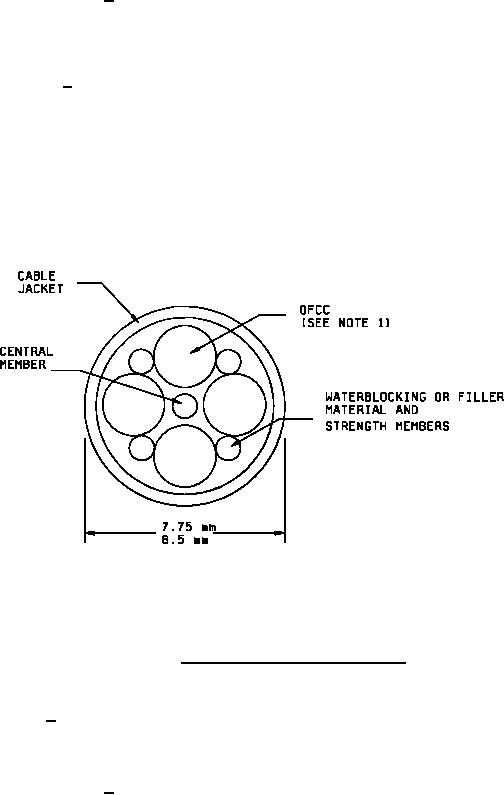

FIGURE 2.
Four OFCC fiber optic cable.
Number of fibers:
4 (one per OFCC).
> 0.8.
Concentricity:
Jacket material: The overall jacket shall be composed of a low halogen, low smoke,
low toxicity polymer material.
< 100.0 kg/km.
Mass per unit length:
Short term minimum bend diameter: Eight times the cable outer diameter. (The
short term minimum bend diameter is to be used in all environmental and mechanical
tests which specify a cable minimum bend diameter.)
Long term minimum bend diameter:
Sixteen times the cable outer diameter.
2
