METRIC
MIL-PRF-85045/19A
16 September 1999
SUPERSEDING
MIL-C-85045/19
26 May 1995
PERFORMANCE SPECIFICATION SHEET
CABLE, FIBER OPTIC, TWENTY-FOUR, THIRTY-THREE, AND THIRTY-SIX FIBERS, CABLE
CONFIGURATION TYPE 2 (OFCC), APPLICATION B (SHIPBOARD),
CABLE CLASS SM AND MM, (METRIC)
This specification is approved for use by all Departments and Agencies
of the Department of Defense.
The requirements for acquiring the product described herein shall consist
of this specification and MIL-PRF-85045.
CLASSIFICATION:
Fiber optic cable configuration (OFCC) type: 2.
Fiber cable class: MM (graded-index, glass core and glass cladding, multimode).
SM (dispersion-unshifted, glass core and glass cladding,
single-mode).
DESIGN AND CONSTRUCTION:
Fiber:
Class MM fibers shall be in accordance with MIL-PRF-49291/6.
Class SM fibers shall be in accordance with MIL-PRF-49291/7.
Buffer diameter:
900 ± 50 µm.
OFCC:
Dimensions and configuration:
See figure 1.
NOTE:
1. Dimensions are in millimeters.

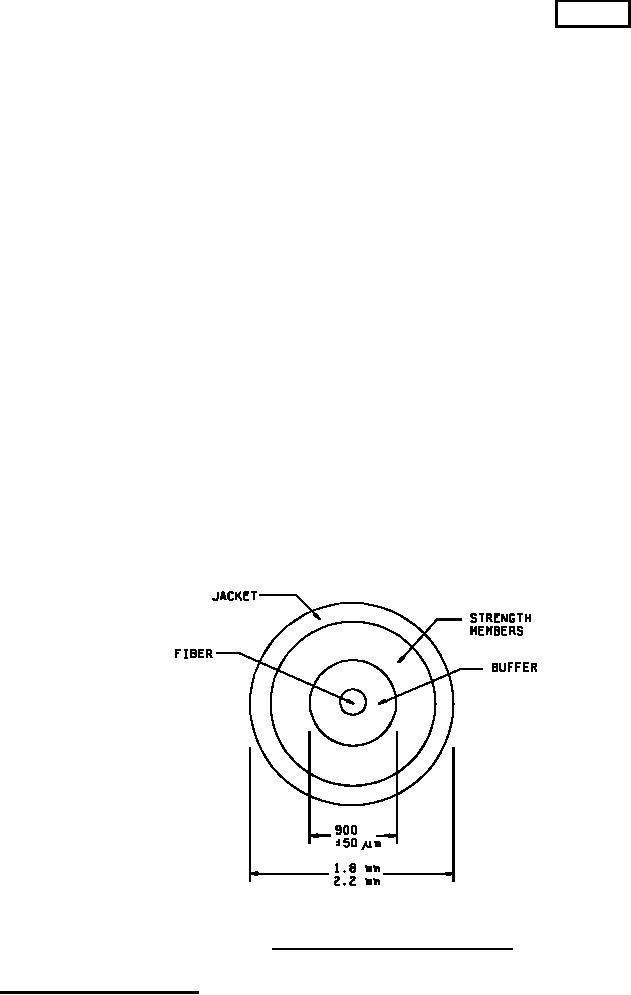

FIGURE 1.
Optical fiber cable component.
AMSC N/A
1 of 5
FSC 6015
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
