METRIC
MIL-PRF-85045/16C
17 June 2014
SUPERSEDING
MIL-PRF-85045/16B
16 September 1999
PERFORMANCE SPECIFICATION SHEET
CABLE, FIBER OPTIC, SINGLE (ONE) FIBER, CABLE CONFIGURATION TYPE 2 (OFCC), TIGHT
BUFFER, CABLE CLASS SM AND MM
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-PRF-85045.
CLASSIFICATION:
Fiber optic cable configuration type: 2 (OFCC)
Fiber optic cable class:
MM (graded-index, glass core and glass cladding, multimode)
SM (dispersion-unshifted, glass core and glass cladding, single-mode)
DESIGN AND CONSTRUCTION:
Fiber:
Class MM fibers shall be in accordance with MIL-PRF-49291/6.
Class SM fibers shall be in accordance with MIL-PRF-49291/7.
Buffer diameter: 900±50 µ m
Finished cable:
Dimensions and configuration: See figure 1.

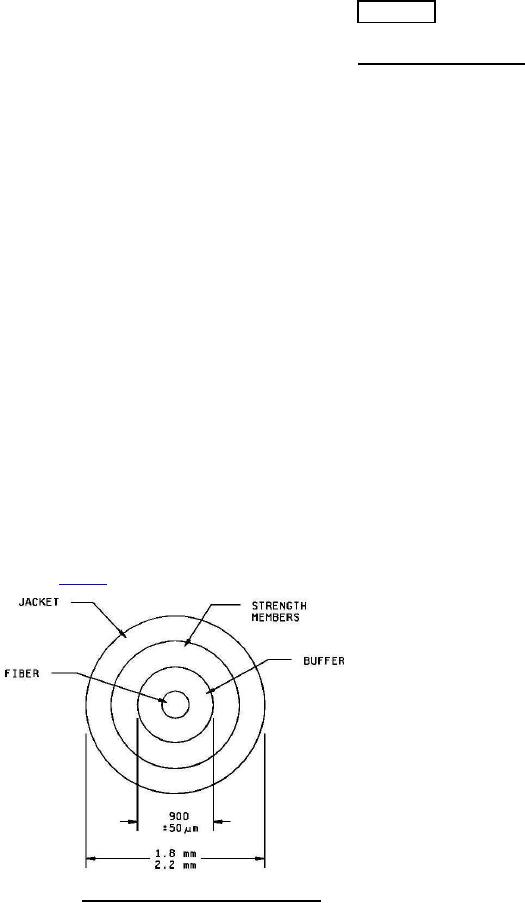

FIGURE 1. Tight buffered single fiber optical cable.
Mass per unit length: ≤15 kg/km
Color: Slate for Class MM fiber. Yellow for Class SM fiber.
